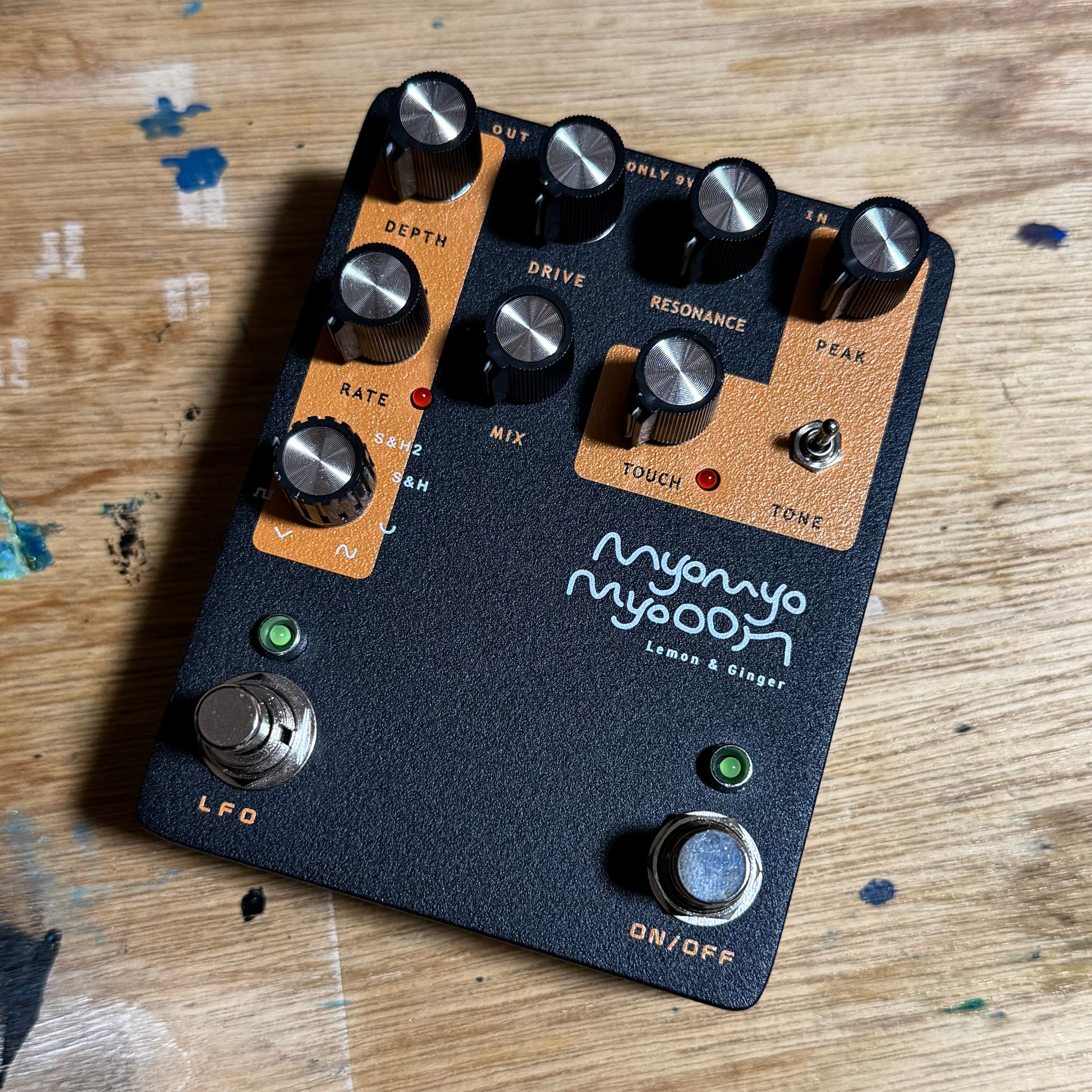

myomyomyooon V3
This pedal combines an envelope filter and an LFO signal generator into a single unit, allowing you to switch between them while playing.

Inspired by the sounds of the Moogerfooger MF-101 and CP-251, it was designed for intuitive operation with stringed instruments such as electric guitars and electric basses.

While the previous model, the "myomyomyooon V2," only allowed for sounds where the envelope filter was controlled by the LFO, the V3 now allows the envelope filter and LFO to be used independently. Additionally, usability has been improved, making it easier to achieve more detailed tone shaping compared to the previous model.

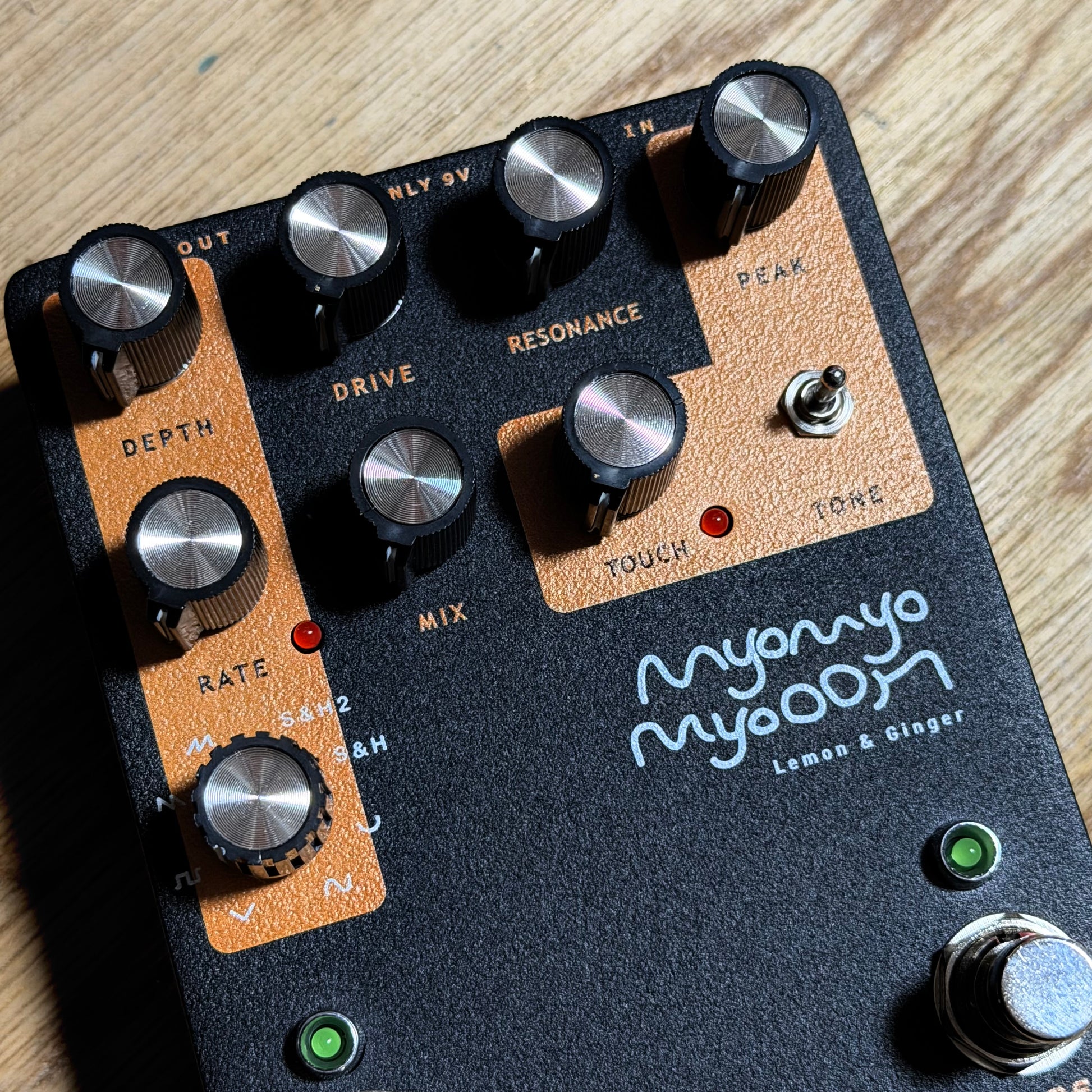

Controls
Envelope Filter
PEAK: Adjusts the sharpness of the effect’s peaks.
TOUCH: Adjusts the sensitivity to touching. Turning the knob to the right reduces sensitivity.
TONE: Allows you to switch between three different tones.

Common
DRIVE: Gain
MIX: Adjusts the balance between the dry signal and the effected signal.
RESONANCE: Adjusts the amount of modulation.

LFO
DEPTH: Adjusts the depth of the signal.
RATE: Adjusts the speed of the signal.
Waveform: Choose from 8 waveforms. The "V," "~," and "U" waveforms have gentle changes, making them difficult to distinguish. "S&H" changes the waveform randomly, and "S&H2" changes both the waveform and DEPTH randomly.

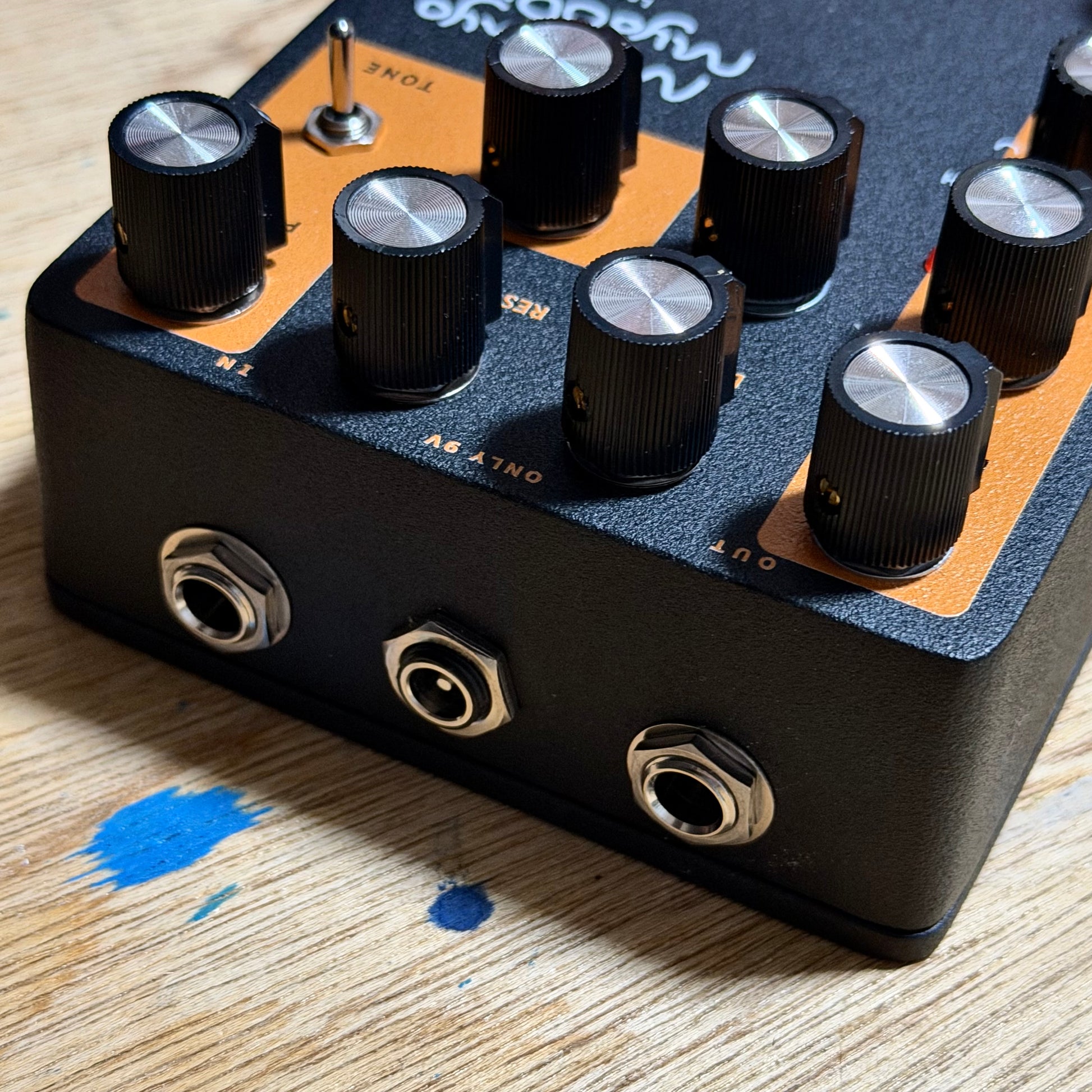

Power
Be sure to use a center-negative 9V power supply. Please note that using 12V or 18V may cause malfunction. Batteries cannot be used.
