CE Preamp(carpet)

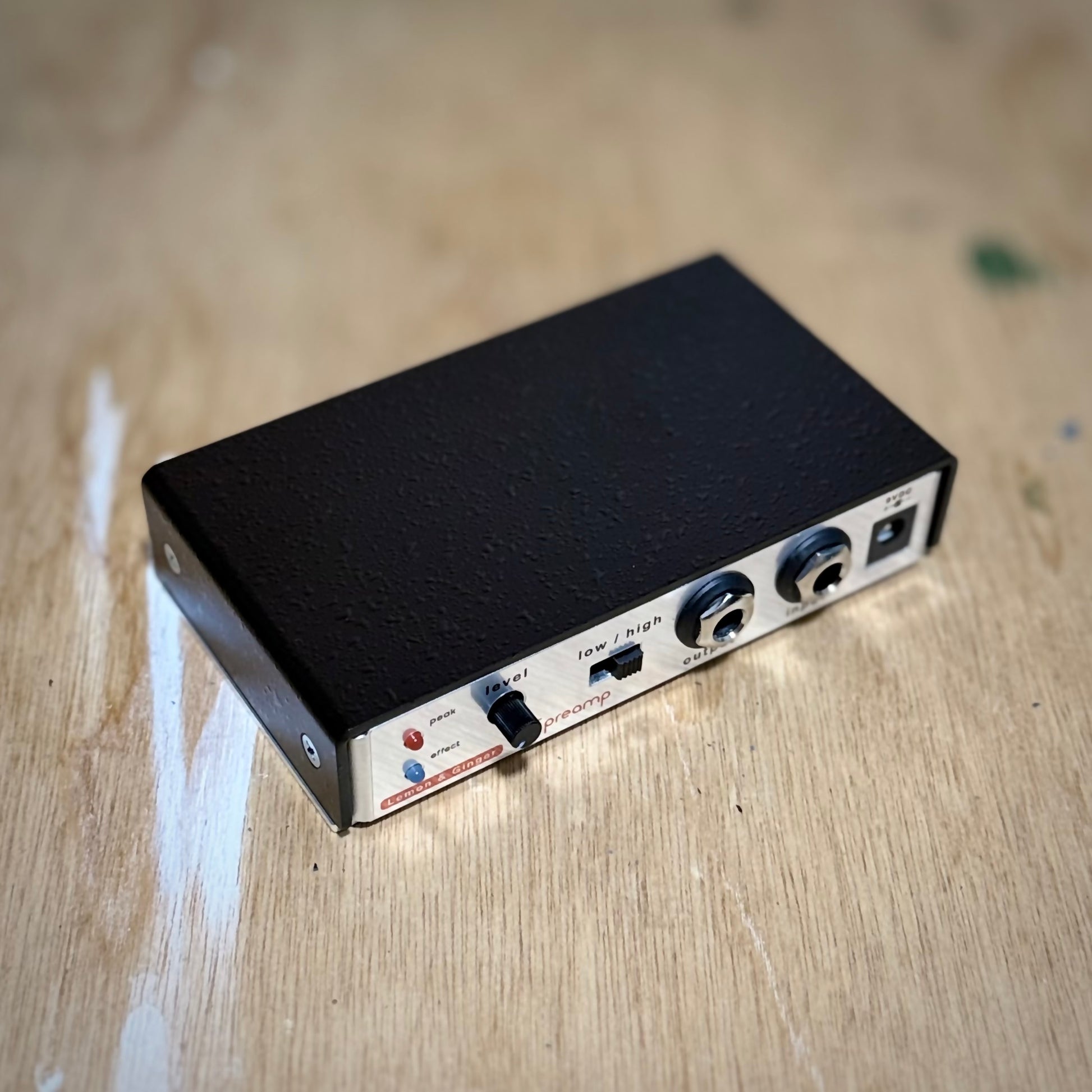

About The CE Preamp

The CE Preamp is based on the preamp from the BOSS CE-1. The BOSS CE-1 uses ±13V for the preamp section, and the CE Preamp is similarly driven by a 9V power supply internally converted to ±13V. Because it uses the same circuit as CE-1, the CE Preamp also has low impedance. You will hear a muffled sound when you use the CE Preamp. That issue can be solved by placing a buffer pedal in front of CE Preamp.

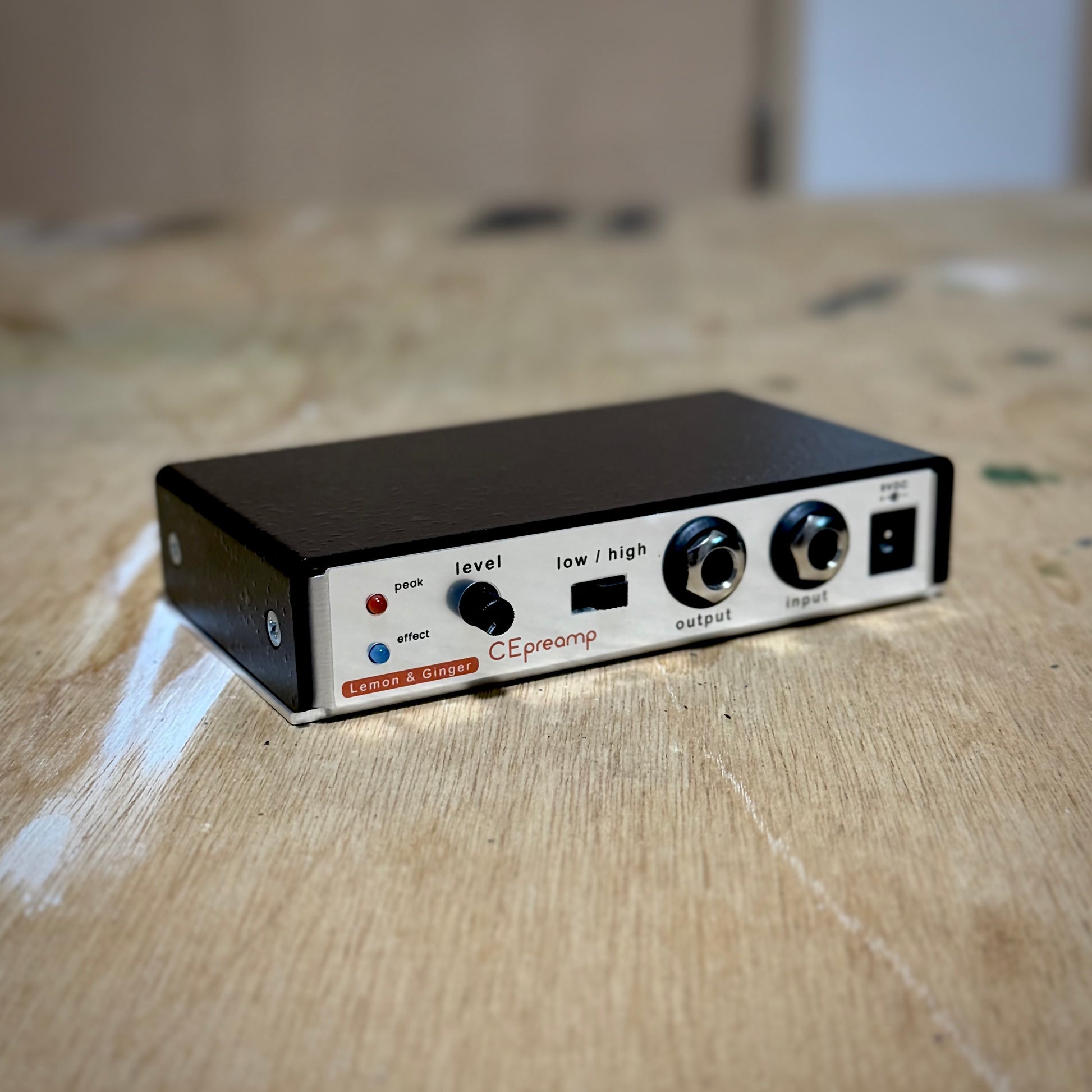

Controls

GAIN : Gain
PEAK : Glows when excessive input is detected.
EFFECT : Always glows when the pedal is driven.
HIGH / LOW : High to pass through the amplification circuit, Low to pass through them.

Components

The CE Preamp uses Toshiba TA7136AP and 2SC900 silicon NPN transistors, just like the ones used in the BOSS CE-1.

Power Jack

Works with 9V DC adaptor (tip-negative)

Size(mm)
